How to measure ERD — the #1 spoke-length error

Get every hub and rim number perfect, and a wrong ERD will still leave you with spokes that are a millimetre or two off — long enough to bottom out in the nipple, short enough to leave threads showing. ERD is the single biggest source of spoke-length error, and almost every free calculator quietly assumes you measured it the same way it expects. We don’t: the calculator asks you which convention you used.

What ERD actually is

Effective Rim Diameter is the diameter of the circle the spoke ends reach — not the rim’s outer diameter, not the bead seat. It’s measured to where the spoke effectively terminates inside the nipple. Because that endpoint depends on the nipple and how deep the spoke seats, ERD is a property of the rim and the nipples you build with, which is exactly why you should measure it yourself rather than trust a spec sheet.

The two conventions

There is no single “ERD” — there are two common reference points, and they differ by roughly a nipple’s worth of length:

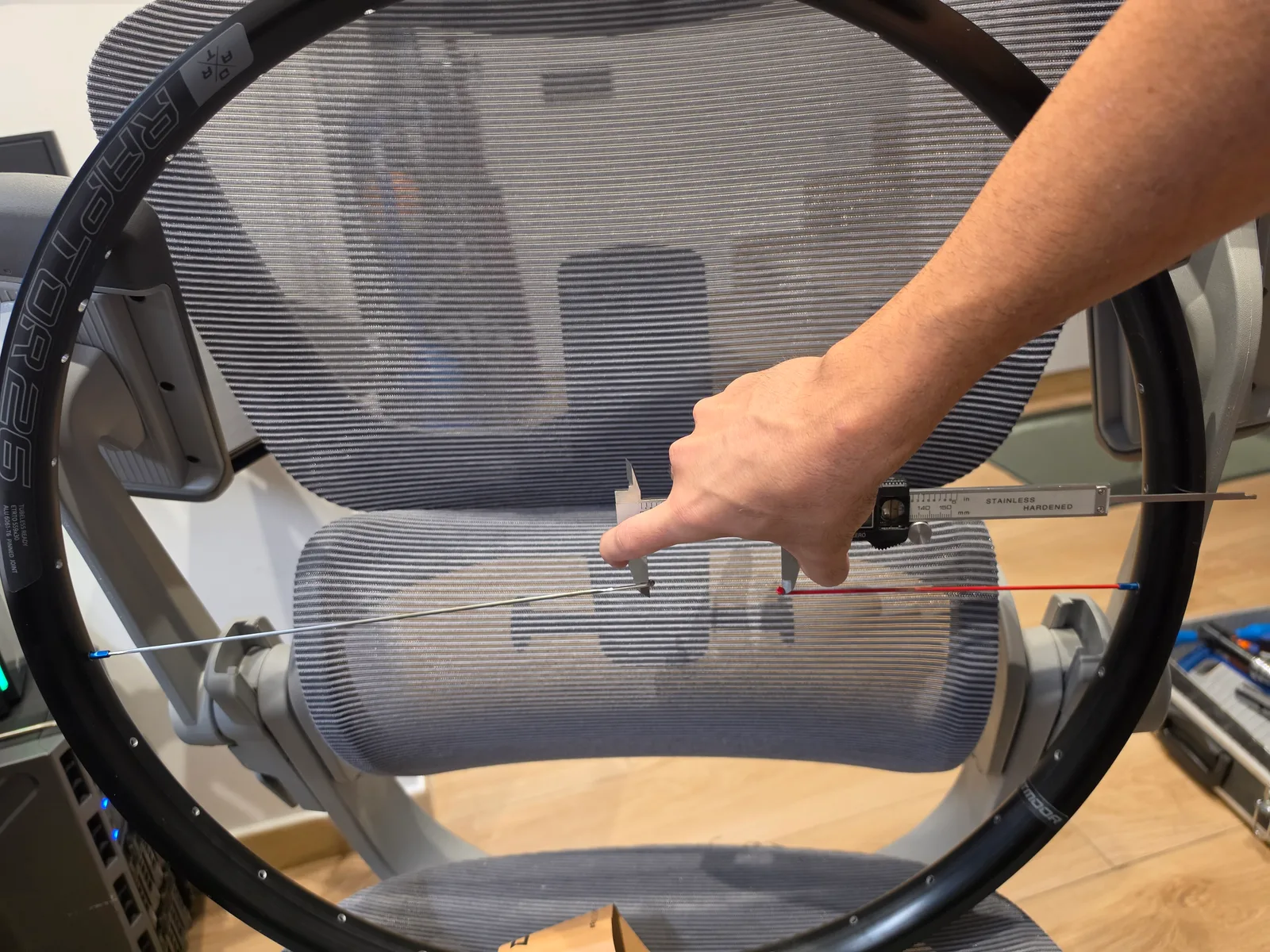

1. Two-spoke method (Park Tool style). Thread two old spokes into opposite nipple holes until their ends are flush with where a spoke would seat, then measure tip-to-tip with a caliper:

ERD = 2 × (length of one reference spoke) + (caliper reading tip-to-tip)

2. Nipple-head / tape method. Measure to the top of the nipple head on each side:

ERD = A + 2 × B

where A is the diameter measured across the rim to the seat of the nipple heads, and B is the length the spoke must reach past that seat (often a fixed nipple offset). Different references, different number — typically a 2–4 mm gap between the two.

Worked example

Say you thread two 300.0 mm reference spokes and read 2.0 mm tip-to-tip:

ERD = 2 × 300.0 + 2.0 = 602.0 mm

Now feed that into the calculator. A 1 mm error in ERD moves each side’s spoke length by very nearly 0.5 mm — and spokes are sold in 2 mm steps, so a careless ERD can push you to the wrong length on both sides at once.

Why it dominates accuracy

Hub flange diameter and centre-to-flange shift the result a little; the cross pattern shifts it a little. ERD sits under a square root multiplied by the rim radius, so its leverage on the final number is large and direct. Three rules that save wheels:

  1. Measure your own rim with your own nipples. Listed ERDs are starting points, not gospel.
  2. Know which convention your number is. A spec sheet that doesn’t say is a guess.
  3. Round each side down independently. A short spoke that buries in the nipple beats one that leaves threads proud — and never average two asymmetric sides into one length.

In the length calculator the ERD field is explicit and front-and-centre, with the convention surfaced rather than assumed. Measure it twice, build once.

For the rest of the jargon, see the glossary and the wheelbuilding fundamentals guide.
